INTRODUCTION

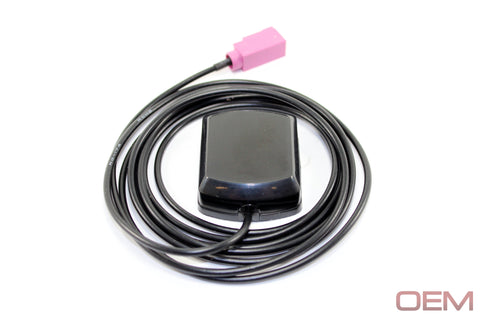

This antenna is designed to install anywhere behind your navigation radio just beneath your dash top (under your windshield) in clear sight of the sky. It can be mounted & secured by its magnetic base or double-sided tape. Once installed, drive the vehicle to calibrate the system and to link to GPS satellites. If your navigation radio has been programmed correctly, your location should populate automatically.

VEHICLE COMPATIBILITY

2009         Ford E-150 & E-250
2007-2008 Ford Edge
2008         Ford Escape*
2007-2008 Ford Expedition
2006-2008 Ford Explorer
2007-2008 Ford Explorer Sport Trac
2004-2008 Ford F-150
2005-2008 Ford F-250 Super Duty
2005-2008 Ford F-350 Super Duty
2005-2007 Ford Five Hundred
2005-2007 Ford Focus
2004-2007 Ford Freestar
2005-2007 Ford Freestyle
2006-2009 Ford Fusion
2004-2009 Ford Mustang
2008-2009 Ford Taurus
2008-2009 Ford Taurus X

2006-2008 Lincoln Mark LT
2007-2008 Lincoln MKX*
2007-2009 Lincoln MKZ*
2007-2008 Lincoln Navigator*
2006         Lincoln Zephyr*

2008         Mercury Mariner*
2006-2009 Mercury Milan
2006-2008 Mercury Mountaineer
2005-2007 Mercury Montego
2004-2007 Mercury Monterey
2008-2009 Mercury Sable

PRODUCT FEATURES

Electrical:
Center Frequency:   1575.42MHz ±3 MHz
VSWR (Voltage Standing Wave Ratio):    1.5:1
Band Width:   ±5 MHz
Impedance:   50 ohm
Peak Gain:    ＞3dBic Based on 7×7cm ground plane
Gain Coverage:    ＞-4dBic at –90°＜0＜+90°(over 75% Volume)
Polarization:    RHCP Antenna

Amplifier:
LNA Gain (Without cable):   28dB Typical
Noise Figure:    1.5dB
Filter Out Band Attenuation:
f0=1575.42 MHZ
7dB Ｍin f0+/-20MHZ
20dB Ｍin f0+/-50MHZ
30dB Ｍin f0+/-100MHZ
VSWR (Voltage Standing Wave Ratio):   ＜2.0
DC Voltage:   3V to 5V
DC Current:    5mA, 10mA Max

Mechanical:
Weight:    ＜110 grams
Size:    48×39×14.1mm
Cable:  RG174 2 meters in length

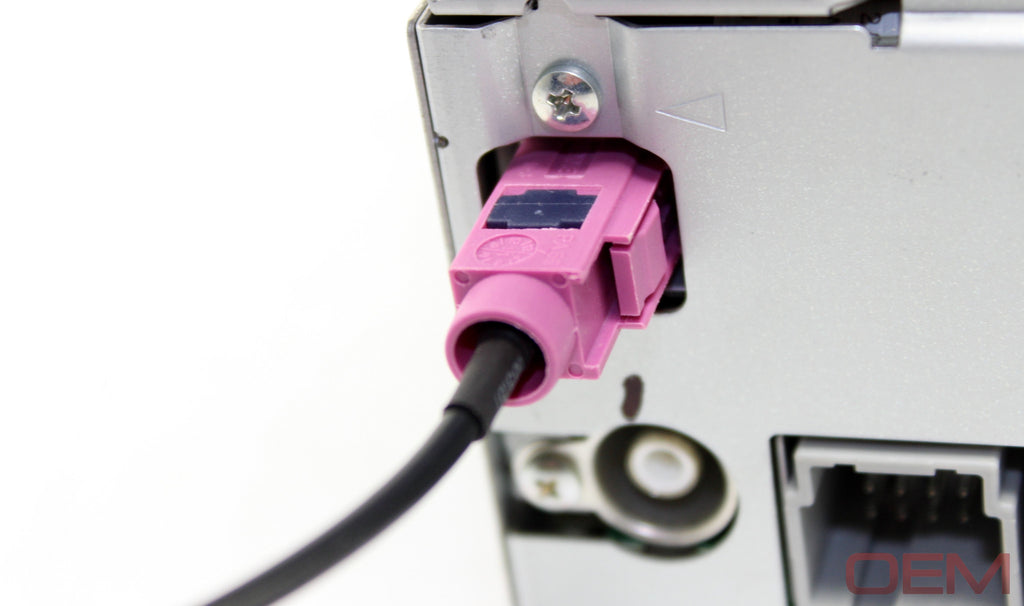

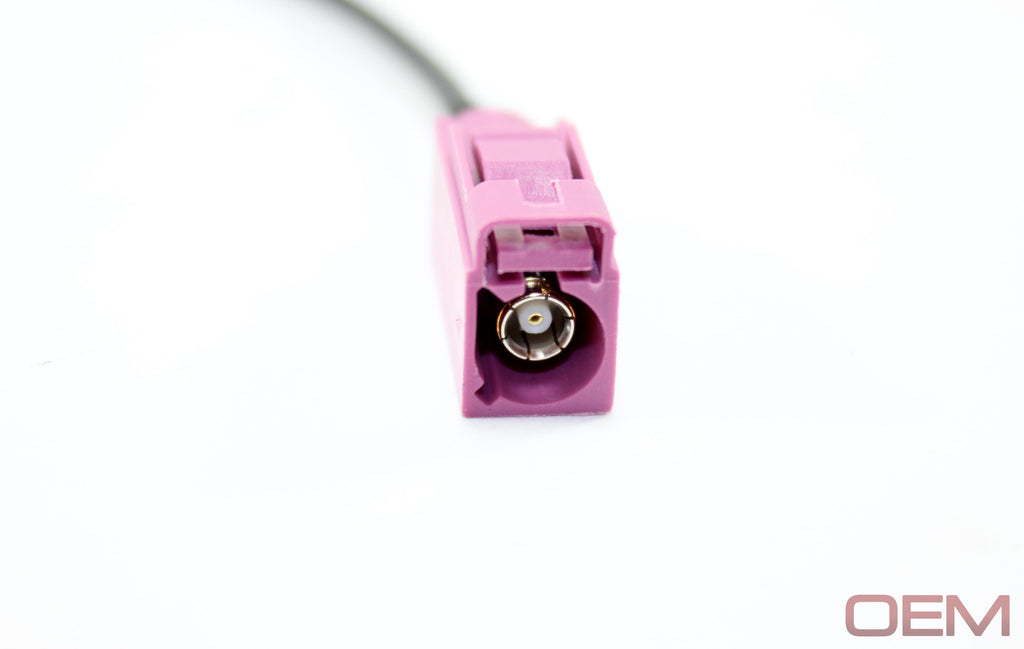

Connector:    Blue FAKRA Female
Mounting:   Magnetic base
Housing:   Black Shell

Environmental:
Working Temperature:    -40℃~ +85℃
Vibration:   Sine Sweep 1g(0-p) 10~50~10Hz each axis
Humidity:    95%~100% RH
Weatherproof:    100%
